With the wide application of lithium-ion batteries, waste lithium-ion batteries not only cause a lot of solid waste pollution, but also bring a serious waste of resources. Lithium-ion batteries have been widely used in various fields of portable electronics, due to the advantages of long service life, no memory effect, and excellent elector-chemical performance. Copper as a raw material is widely used in the lithium battery anode , and the carbon power stick on it, also can be used as plastic, rubber and other additives. Therefore, the effective separation of the waste lithium battery electrode component material can promote the recycling of the waste lithium battery and eliminate the corresponding environmental impact.

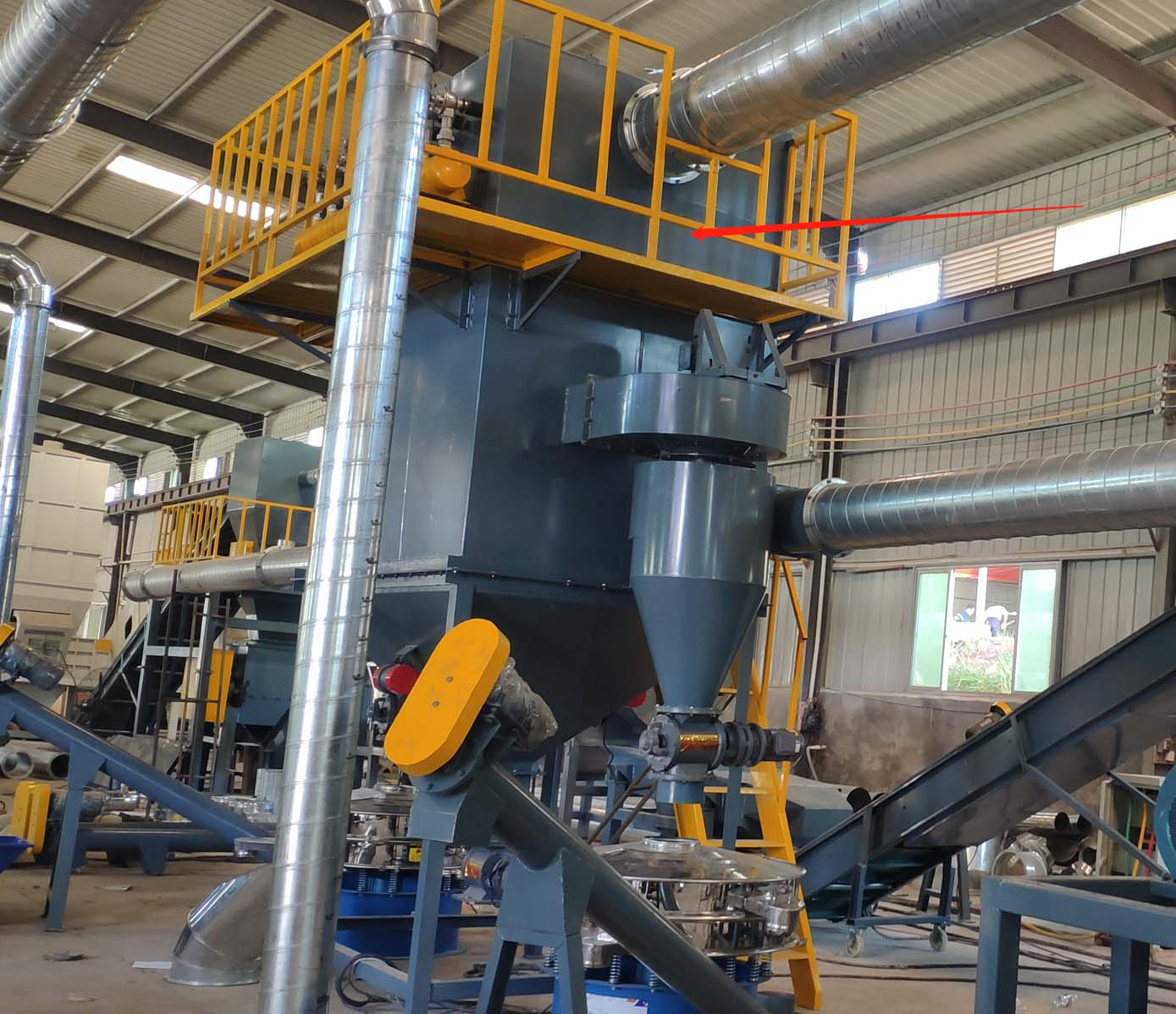

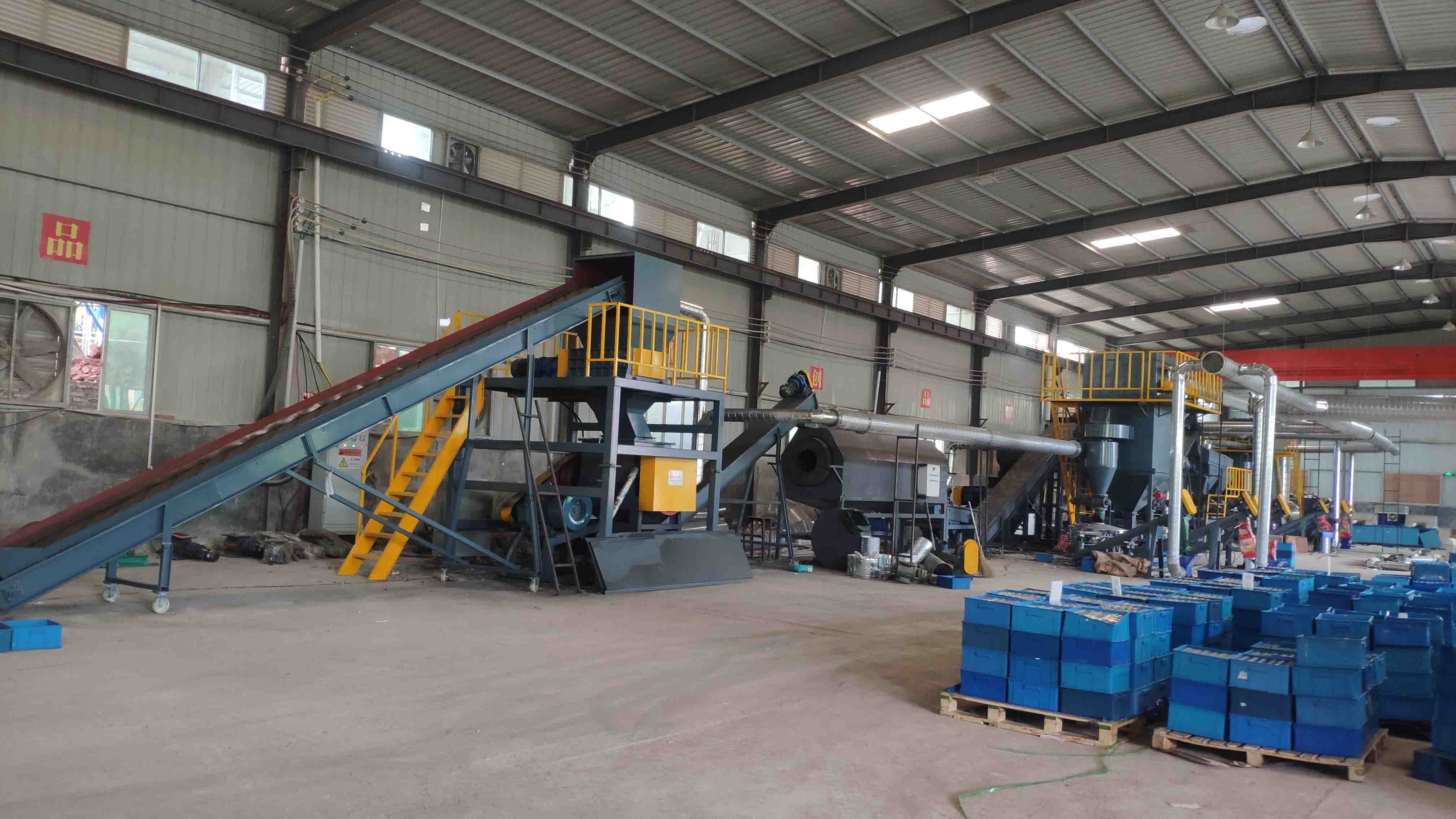

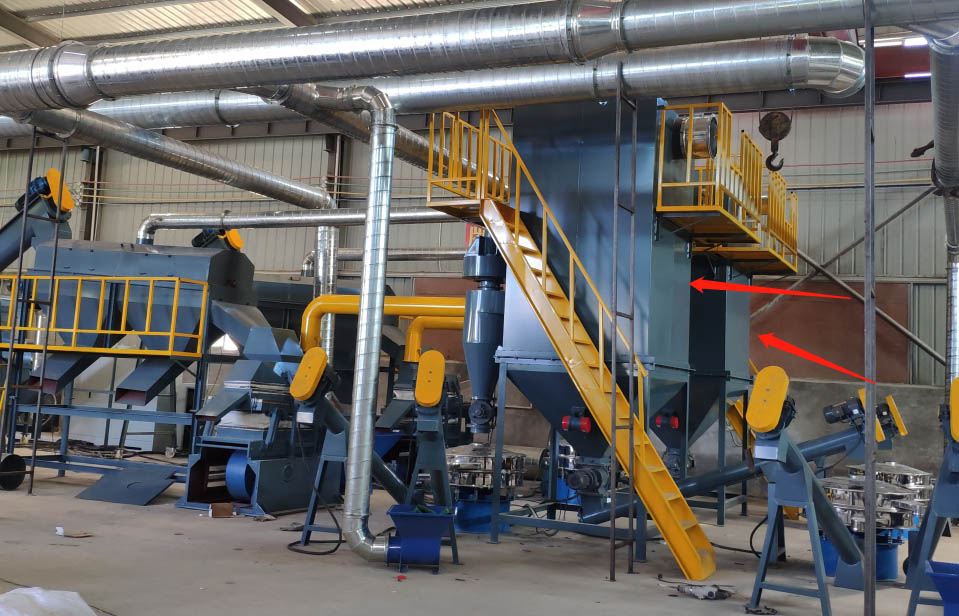

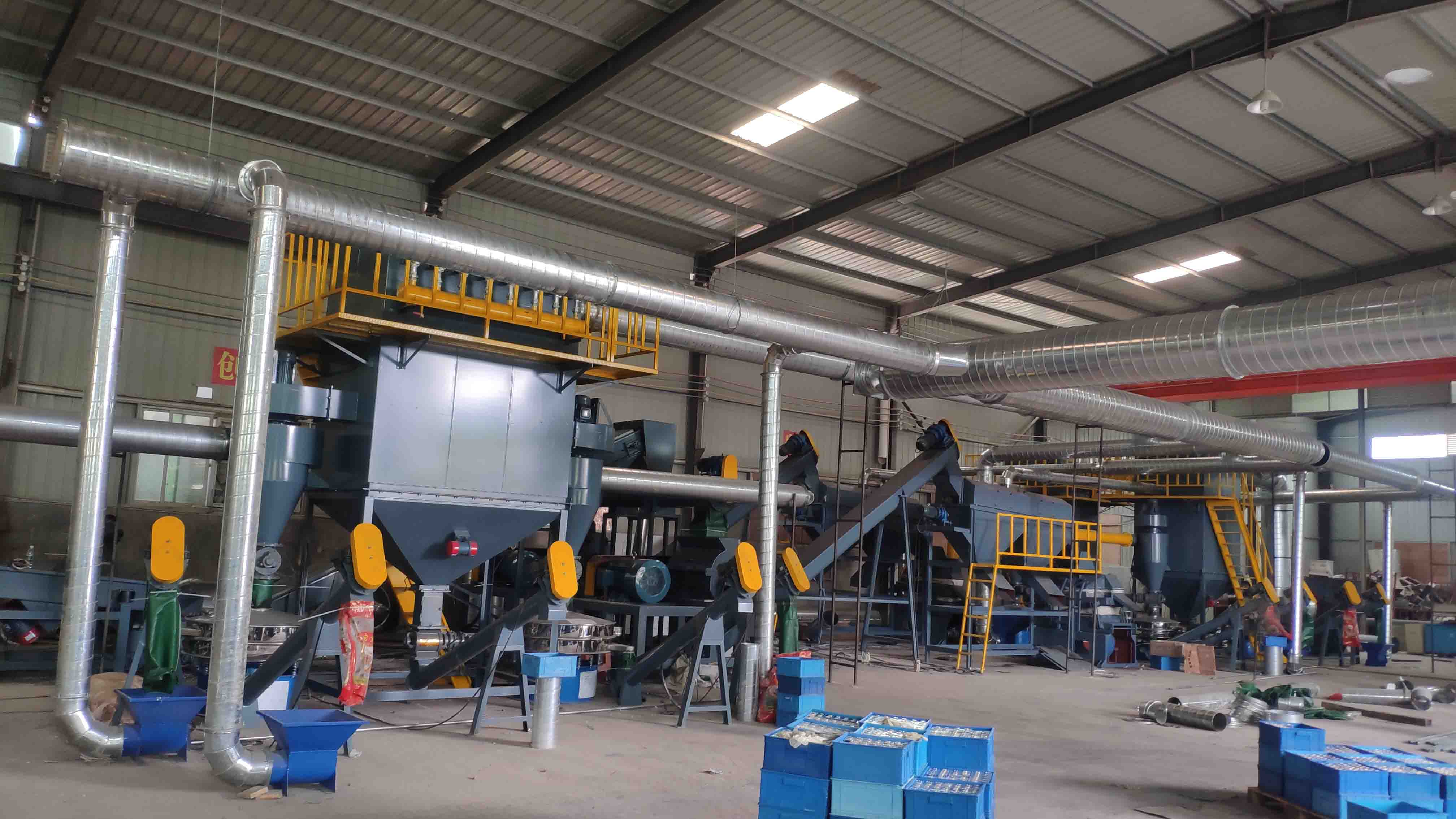

Our Lithium Battery Recycling Plant adopts the dry process process to effectively separate and recycle the waste lithium batteries. The entire plant is consisted of  crushing system, sorting system, dust removal system, air purification system, etc.

Technical parameters:

1. Capacity: 2-2.5/hour

2. Size: L52576mm*W9698*4348 mm

3. Total Power:492.76KW

4. Electricity: 3 Phase, 380V, 50HZ (Tailor made available)

5.Powder recovery rate: ≥98%

6.Iron recovery rate (weight%): ≥ 99%

7.Copper recovery rate (weight%): ≥ 97%

8.Aluminium recovery rate(weight%): ≥ 97%

9.Carbon powder recovery rate (weight%):≥ 99%

10.The noise, dust leakage and exhaust emission meet the relevant national standards and requirements

11.Site requirements: Length is above 7m; door width is above 4m, height is above 5m; Load weight is above 10 t.
